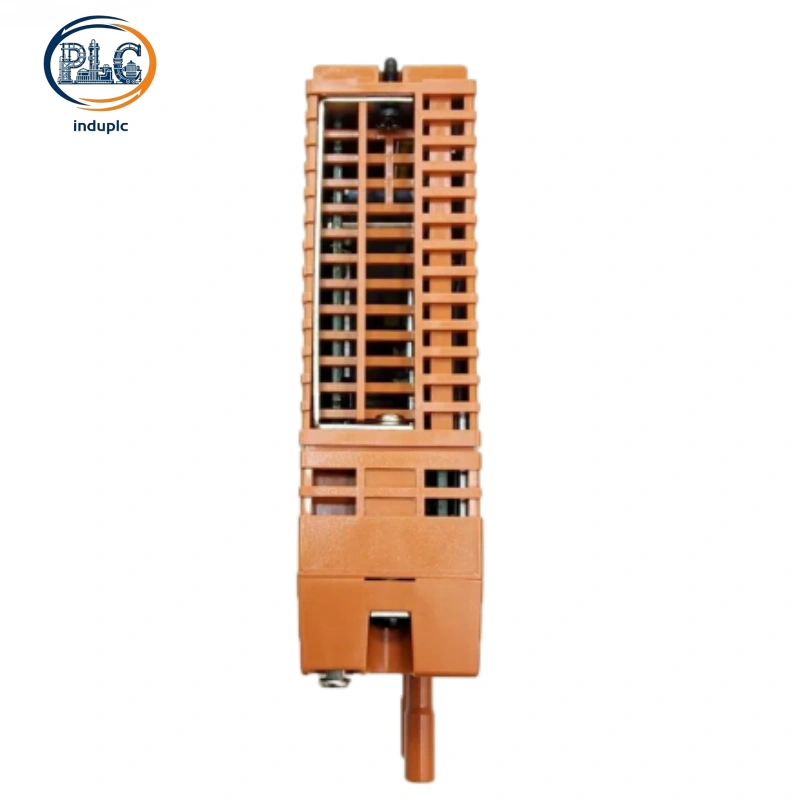

Yokogawa SAI143‑S00 Analog Input Module, 16-Channel Isolated 4-20mA HART FIO Card for Standard CENTUM VP DCS General Process Monitoring

Yokogawa SAI143‑S00 16-Channel Isolated 4-20mA HART Analog Input FIO Module for Standard DCS Process Monitoring

1. Standard 16-Channel Isolated Analog Acquisition

The SAI143‑S00 is a mainstream high-density analog input module designed for general industrial DCS monitoring, integrating 16 channels of 4–20mA DC current signal acquisition in one compact FIO slot. It supports flexible configuration for both 2-wire and 4-wire field transmitters, covering conventional pressure, temperature, flow and liquid level instrumentation signals for daily process control.

Adopting reliable module-level isolation design, it features 1500V AC one-minute dielectric withstand voltage between field circuits and the DCS internal system, effectively isolating common-site electromagnetic interference and avoiding cross-channel signal crosstalk. Equipped with stable 16-bit A/D conversion, it maintains consistent measurement accuracy with standard 40ms full-channel update cycle, fully meeting real-time monitoring demands for ordinary continuous production loops.

2. Basic HART Communication & Loop Diagnostics

SAI143‑S00 supports standard HART protocol communication, enabling bidirectional data interaction with mainstream HART field transmitters. In addition to accurate 4-20mA analog value collection, it acquires basic device status information, tag parameters and operating data, realizing simple remote instrument configuration and on-site equipment management without handheld debugging tools.

Built-in basic loop diagnosis functions automatically detect common field faults including wire breakage, short circuit and abnormal signal offset. Real-time fault alarm and status recording help engineers quickly locate loop failures, improving daily maintenance efficiency and reducing unplanned production downtime for general control systems.

3. Cost-Effective General-Grade Industrial Stability

Positioned as a standard commercial-grade module, SAI143‑S00 delivers balanced performance and cost advantages for non-safety industrial scenarios. With stable temperature drift control of ±16µA/10°C and low signal attenuation characteristics, it maintains long-term consistent measurement precision under conventional factory temperature and humidity fluctuations.

The module supports 0–55°C standard industrial operating temperature and 5%–95% non-condensing humidity, adapting to ordinary indoor cabinet operating environments. Optimized circuit design and industrial component screening ensure 24/7 stable operation for conventional process control systems with low failure rate.

4. Standard FIO Architecture & DCS System Compatibility

Complying with Yokogawa unified FIO hardware specifications, SAI143‑S00 supports plug-and-play installation and fast ESB bus handshake. It is fully compatible with CENTUM VP DCS platforms, perfectly matching mainstream FCS racks for new project deployment, conventional I/O expansion and old system renovation.

With standard transmitter power supply specifications and 25mA overcurrent protection, it stably drives various ordinary field transmitters. Unified pin definitions and supporting FIO cable/terminal board compatibility simplify on-site wiring and commissioning, reducing engineering and spare part management costs.

5. Application Scenarios & Core Product Strengths

Application Scenarios: Widely used in general industrial fields such as conventional chemical plants, thermal power auxiliary systems and manufacturing automation. Ideal for ordinary process parameter monitoring, non-safety analog loop acquisition and large-scale conventional HART instrument centralized management.

Core Competitive Advantages: High-density 16-channel design saves cabinet space and reduces hardware investment; standard HART function meets general intelligent instrument management needs; reliable isolation design ensures stable signal transmission; standard industrial adaptation covers most conventional working conditions; excellent cost-performance makes it the preferred solution for large-scale ordinary DCS I/O configuration.
