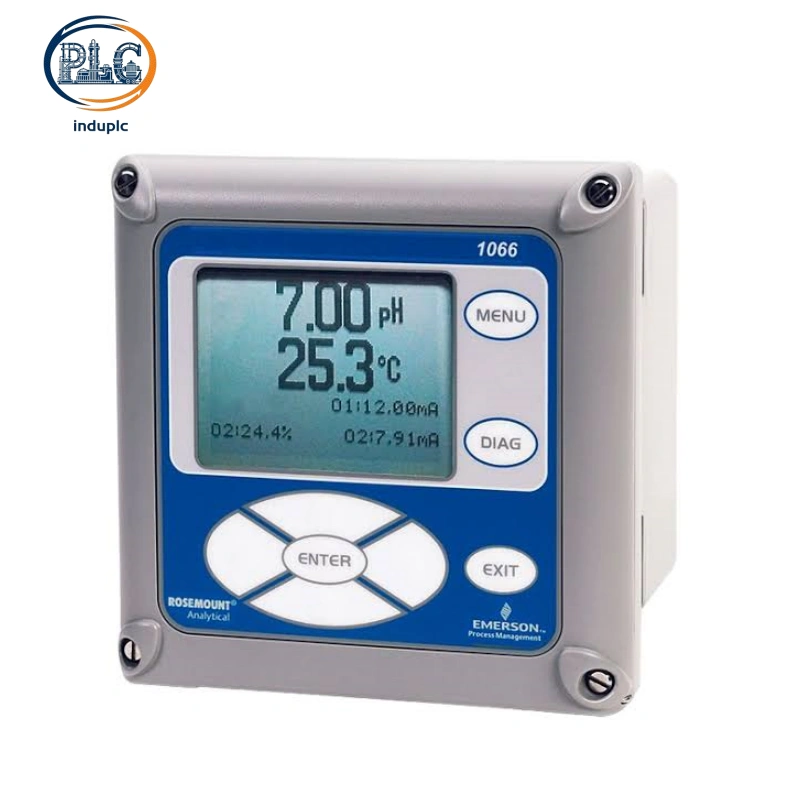

Rosemount 1066‑01‑22‑38‑AN High-Precision Liquid Analytical Transmitter, Dual-Channel pH/ORP 4-20mA HART Wall-Mount Process Analyzer for Critical Water Quality Monitoring

Rosemount 1066‑01‑22‑38‑AN Dual-Channel High-Precision pH/ORP Liquid Analytical Transmitter with HART Protocol

Advanced Hardware Configuration & Model Code Definition

Official Datasheet Suffix Parameter Decoding

Each character combination of Rosemount 1066‑01‑22‑38‑AN corresponds to factory-calibrated hardware and functional settings, with zero field modification needed for standard system integration. Every segment follows Emerson’s official coding standards to define power type, measurement board, communication mode and enclosure specifications.

• 1066: Premium dual-channel liquid analytical transmitter platform, upgraded for higher precision and dual-sensor simultaneous monitoring

• 01: 115V AC mains power configuration, matching standard industrial facility power distribution infrastructure

• 22: Specialized pH/ORP signal input board, optimized for high-fidelity electrochemical sensor signal collection

• 38: Dual fully isolated 4-20mA analog outputs with integrated HART digital communication for dual-variable data transmission

• AN: Standard polycarbonate wall-mounted enclosure, designed for non-hazardous indoor industrial installation environments

Dual-Channel Monitoring Capacity & Precision Measurement Performance

Simultaneous Dual-Point Fluid Analysis

Rosemount 1066‑01‑22‑38‑AN supports independent dual-channel pH and ORP detection, enabling two separate process fluid monitoring points via one single transmitter. Dual-channel independent circuitry eliminates signal crosstalk, ensuring parallel accurate data acquisition without precision loss. This dual-function design reduces on-site hardware quantity and simplifies loop layout for multi-point water quality systems.

Optimized Reading Stability & Temperature Compensation

Covering standard industrial measurement ranges of 0–14 pH and -1500mV to +1500mV ORP, Rosemount 1066‑01‑22‑38‑AN maintains consistent high-resolution readings for subtle fluid condition changes. Intelligent automatic temperature compensation corrects measurement deviation caused by process and ambient temperature fluctuations, securing reliable data output in variable industrial working conditions.

Smart Calibration & Onboard Diagnostics

Automatic buffer recognition streamlines on-site calibration workflows and cuts manual operation errors. Real-time sensor health monitoring tracks signal drift, probe contamination and circuit anomalies, supporting predictive maintenance strategies. Factory pre-calibration allows immediate commissioning after field installation.

Isolated Output Design & HART Communication Functions

Dual Isolated 4-20mA Analog Transmission

Rosemount 1066‑01‑22‑38‑AN integrates two galvanically isolated 4-20mA output channels for independent process variable transmission. Isolation design effectively suppresses ground loop noise, electromagnetic interference and channel-to-channel signal distortion, adapting to high-density wiring environments in industrial control cabinets.

Bidirectional HART Smart Communication

Superimposed HART protocol enables remote device configuration, parameter adjustment and historical data query. Field technicians access calibration logs, sensor diagnostic data and real-time process status without on-site operation. Digital signal transmission complements analog output, building a dual-backup data transmission system for process control.

Mechanical Structure & Industrial Environmental Adaptability

Reliable Wall-Mount Enclosure Layout

Lightweight polycarbonate housing equips Rosemount 1066‑01‑22‑38‑AN with outstanding structural durability for long-term indoor deployment. Standard reserved conduit ports facilitate sealed wiring installation, preventing dust and moisture from invading internal circuits and protecting core measurement components.

Stable Wide-Range Operating Performance

The transmitter operates stably within 0°C to 55°C ambient temperature and 5%–95% non-condensing humidity range. Reinforced internal component structure resists minor mechanical vibration and industrial electromagnetic radiation, supporting 24-hour continuous operation for long-cycle process monitoring tasks.

Industrial Application Scenarios & Core Selection Advantages

Best-Fit Process Monitoring Scenarios

Rosemount 1066‑01‑22‑38‑AN applies to critical municipal water purification, industrial wastewater treatment, chemical reaction process monitoring and circulating cooling water quality control. The dual-channel design perfectly suits scenarios requiring simultaneous monitoring of two fluid parameters or two independent sampling points.

Key Reasons for Model Selection

Enterprises prefer Rosemount 1066‑01‑22‑38‑AN for its unique dual-channel integrated monitoring capability that single-channel transmitters cannot match. Integrated pH/ORP hardware avoids additional board assembly, while dual isolated outputs and HART compatibility adapt to new and upgraded automation systems. Stable high-precision performance reduces maintenance frequency and overall project operating costs.
