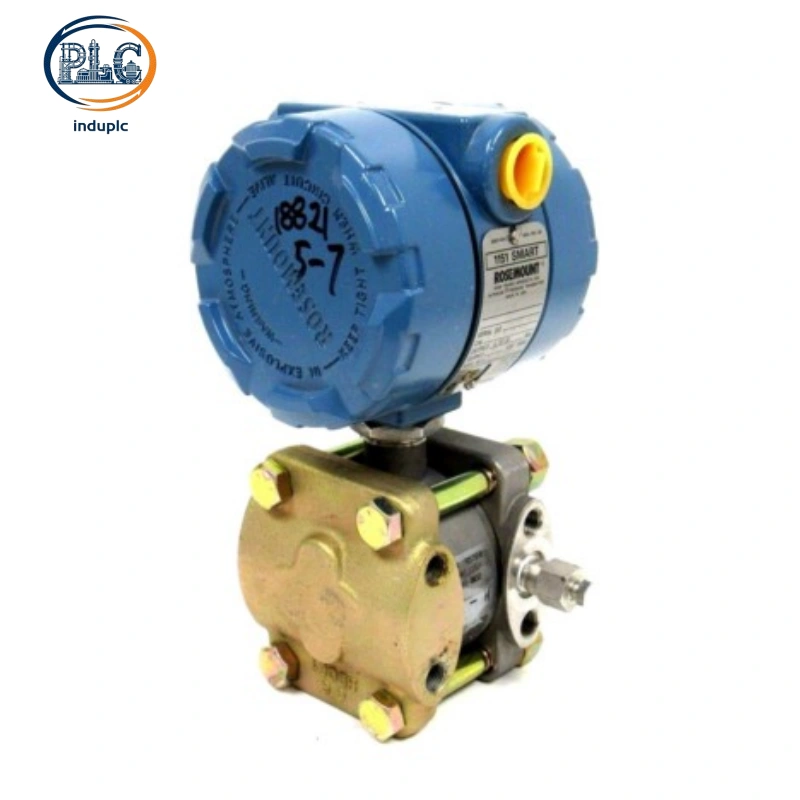

Rosemount 1151GP6S22B1D Gauge Pressure Transmitter, 0-100psi Range 4-20mA Smart Analog Pressure Sensor for Industrial Process Pressure Monitoring

Rosemount 1151GP6S22B1D Industrial Smart Gauge Pressure Transmitter with 4-20mA Analog Output

Model Code Breakdown & Factory Preset Specifications

Datasheet Verified Suffix Configuration Definition

Every character code of Rosemount 1151GP6S22B1D represents fixed factory hardware and functional parameters, with all measurement ranges, material specifications and electrical features preset before delivery. Standardized coding ensures accurate model matching for equipment replacement, project design and spare part inventory management.

• 1151: Classic Rosemount smart pressure transmitter platform with field-proven industrial stability and high repeatability

• GP: Gauge Pressure measurement type, designed for positive process pressure detection relative to atmospheric pressure

• 6: Calibrated pressure range code, supporting 0–100 psi working measurement span

• S: Standard solid-state sensor module with enhanced long-term drift resistance

• 22: Dual stainless steel process and isolate diaphragm material, corrosion-resistant for general industrial fluid media

• B: Standard industrial aluminum transmitter housing with durable surface protection

• 1: Standard 4-20mA analog signal output without digital protocol expansion

• D: Standard factory calibration and electrical configuration for global general-purpose deployment

Precision Pressure Measurement & Long-Term Stability Performance

Accurate Span Control & Repeatable Readings

Rosemount 1151GP6S22B1D achieves reference accuracy up to ±0.075% of calibrated span, delivering consistent pressure feedback for precise process control. The solid-state sensing element minimizes signal deviation during continuous operation, maintaining stable linear output across the full 0–100 psi measurement range. Strict factory calibration eliminates baseline offset for reliable on-site startup.

Industry-Leading Long-Term Drift Resistance

Rosemount 1151GP6S22B1D retains measurement stability within ±0.1% error over two years of continuous runtime. Optimized internal circuit and sensor structure resist ambient temperature changes and minor mechanical vibration, avoiding frequent calibration adjustments. Low-drift performance cuts routine maintenance workload and reduces unplanned process interruption.

Corrosion-Resistant Structure & Process Media Adaptability

Stainless Steel Wetted Component Design

Dual stainless steel diaphragms equip Rosemount 1151GP6S22B1D with excellent media compatibility. The wetted structure tolerates non-corrosive industrial liquids, clean gas and general process fluid environments, preventing oxidation and medium erosion damage. Premium material selection extends service life in continuous 24/7 field operation.

Rugged Field-Grade Housing Protection

Industrial aluminum housing shields internal sensing circuits from dust, moisture and electromagnetic interference. Reinforced structural design withstands outdoor temperature fluctuations and workshop mechanical vibration, adapting to non-hazardous general industrial installation scenarios. Compact integrated layout simplifies field mounting and wiring procedures.

Electrical Output & Loop Operational Characteristics

Standard 4-20mA Linear Analog Transmission

Rosemount 1151GP6S22B1D outputs linear 4-20mA current signals corresponding to 0–100 psi pressure variation, perfectly matching DCS and PLC system signal acquisition standards. Linear signal mapping ensures intuitive process variable recognition and accurate loop regulation for industrial automation systems.

Flexible Loop Power Adaptability

The two-wire loop power design supports 12V DC to 45V DC operating voltage, compatible with conventional industrial power distribution systems. Suitable load resistance range adapts to diverse cabinet wiring and signal transmission distances, maintaining stable signal output without external power accessories.

Core Selection Advantages & Industrial Application Scenarios

Key Reasons to Choose Rosemount 1151GP6S22B1D

Plant automation teams favor Rosemount 1151GP6S22B1D for its mature industrial reliability, cost-effective performance and universal compatibility. Classic 1151 series sensing technology delivers verified stability for long-cycle process monitoring, while 100psi standard range covers most general pressure loop demands. Stainless steel wetted parts expand media adaptability, and standard analog output fits both new construction and legacy system retrofit projects.

Target Industrial Use Cases

Rosemount 1151GP6S22B1D serves pressure monitoring tasks in petrochemical auxiliary pipelines, thermal power plant process systems, manufacturing fluid pipelines and water treatment industrial equipment. It excels in general gauge pressure detection, pipeline condition tracking and process pressure stabilization control for continuous production loops.
