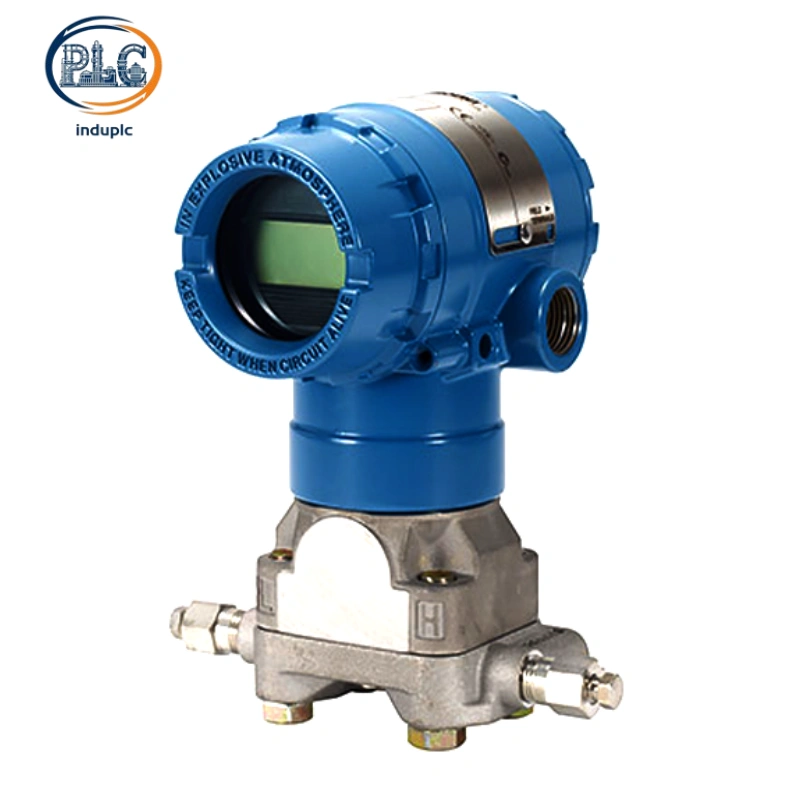

Rosemount 2051CD2A22A1AB4M5 Coplanar Differential Pressure Transmitter, HART 7 4-20mA SIL2 Certified High-Stability Industrial DP Transmitter

Rosemount 2051CD2A22A1AB4M5 High-Stability Coplanar Differential Pressure Transmitter with SIL2 Safety Rating

Superior Coplanar Design & Field Installation Advantages

Optimized Coplanar Platform Structure

Rosemount 2051CD2A22A1AB4M5 adopts industry-standard coplanar mounting architecture, a streamlined layout exclusive to modern 2051 series pressure transmitters. The flat coplanar base enables direct mounting with manifold valves and diaphragm seal assemblies, eliminating cumbersome adapter fittings required for traditional transmitter installations. This integrated structure reduces leak points and simplifies on-site mechanical assembly.

Simplified System Calibration & Maintenance

Coplanar engineering shortens field calibration cycles and lowers routine upkeep complexity for Rosemount 2051CD2A22A1AB4M5. Symmetrical pressure sensing layout ensures balanced high-side and low-side pressure response, minimizing zero drift during long-term operation. Unified mounting dimensions support seamless replacement with legacy DP transmitters for system upgrade projects.

Complete Model Code Parameter Decoding for Rosemount 2051CD2A22A1AB4M5

Datasheet-Based Suffix Configuration Breakdown

Every character segment of Rosemount 2051CD2A22A1AB4M5 corresponds to factory-locked hardware, material, communication and safety specifications. All configurations comply with official Emerson coding standards, delivering fixed performance parameters without field modification for precise engineering matching.

• 2051: Next-generation smart pressure transmitter platform with upgraded precision and industrial durability

• CD: Coplanar Differential pressure measurement type, dedicated for industrial differential pressure monitoring

• 2: Standard differential pressure measurement range, covering common industrial DP span requirements

• A: 4-20mA analog output with superimposed HART 7 digital communication protocol

• 22: Dual 316 stainless steel process and isolation diaphragms for general industrial media compatibility

• A: Standard aluminum polyurethane-coated field housing with robust environmental protection

• 1: Standard non-hazardous general-purpose industrial grade configuration

• AB4: Standard electrical assembly and terminal configuration for global industrial deployment

• M5: SIL2 safety integrity certification compliant with IEC 61508 industrial safety standards

Precision DP Measurement & Long-Term Operational Stability

High-Accuracy Differential Pressure Detection

Rosemount 2051CD2A22A1AB4M5 achieves exceptional reference accuracy up to ±0.075% of calibrated span, capturing subtle differential pressure fluctuations in critical process loops. Advanced solid-state sensor technology maintains linear signal output across the full operational span, supporting precise flow calculation, liquid level inference and pressure difference regulation.

Extended Low-Drift Performance

Engineered for prolonged industrial runtime, Rosemount 2051CD2A22A1AB4M5 sustains ultra-low measurement drift within ±0.1% over two consecutive years of continuous operation. Built-in ambient temperature compensation offsets environmental temperature swings, while anti-vibration structural design resists mechanical disturbance in high-vibration workshop environments.

Media Compatibility & Harsh Environment Adaptability

Corrosion-Resistant Wetted Components

Dual 316 stainless steel diaphragms equip Rosemount 2051CD2A22A1AB4M5 with broad media adaptability for industrial gas, clean liquid and vapor process media. Premium metallic material prevents oxidation and medium corrosion damage, maintaining intact sensing performance in long-cycle chemical, power and water treatment process operation.

Wide Industrial Operating Tolerance

The transmitter operates stably within -40°C to 85°C ambient temperature range and 5% to 95% non-condensing humidity. Reinforced housing shielding suppresses electromagnetic interference from adjacent industrial equipment, ensuring consistent signal transmission in densely wired control cabinets and open field installation zones.

HART 7 Communication & SIL2 Safety Functional Value

Dual Analog-Digital Smart Communication

Rosemount 2051CD2A22A1AB4M5 transmits real-time differential pressure values via standard 4-20mA linear analog output, compatible with all mainstream DCS and PLC automation systems. Superimposed HART 7 protocol enables remote parameter configuration, diagnostic status query, calibration data review and fault log retrieval without on-site physical access.

Safety-Certified Process Loop Protection

Authoritative SIL2 certification qualifies Rosemount 2051CD2A22A1AB4M5 for safety-related process monitoring and auxiliary interlock loops. Real-time hardware self-diagnostics detect sensor faults, circuit anomalies and power abnormalities instantly, locking safe output states to prevent incorrect process actions and minimize unplanned production downtime.

Core Selection Reasons & Target Industrial Applications

Key Deployment Advantages

Industrial facilities select Rosemount 2051CD2A22A1AB4M5 for its integrated coplanar convenience, verified safety performance and long-term stability. SIL2 compliance meets strict safety loop standards for critical production processes, while HART 7 smart functions simplify modern asset management workflows. Corrosion-resistant construction and low-drift design reduce long-term maintenance costs significantly.

Primary Industrial Use Cases

Rosemount 2051CD2A22A1AB4M5 serves differential pressure monitoring for pipeline flow measurement, tank liquid level detection, filter pressure difference tracking and heat exchanger process control. It fits petrochemical processing, thermal power generation, industrial water treatment and pharmaceutical manufacturing automation systems perfectly.
