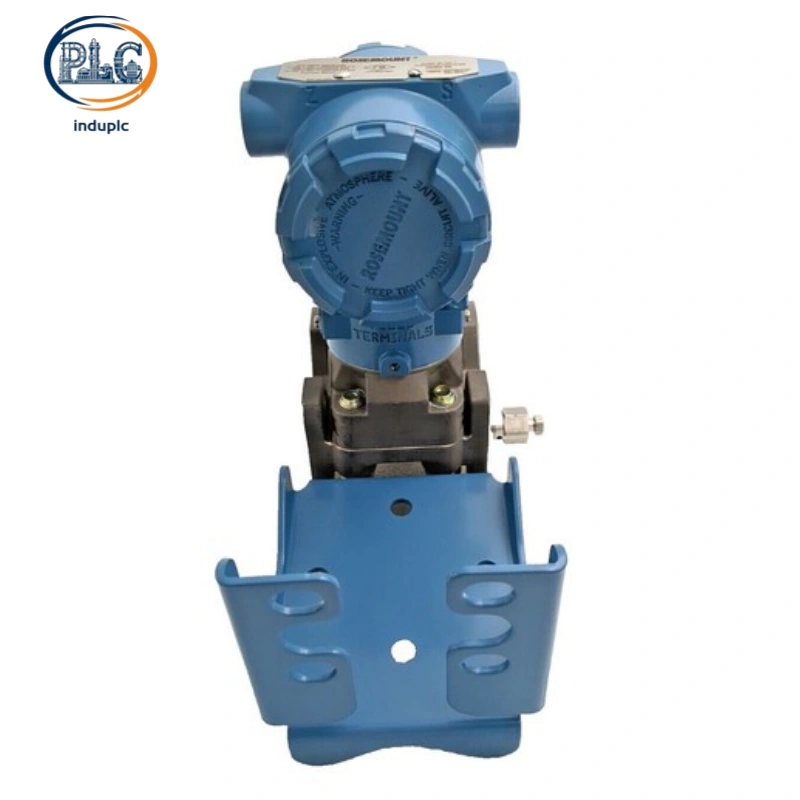

Rosemount 3051CG4A22A1AB4M5 Coplanar Gauge Pressure Transmitter, High-Range HART 7 SIL2 Certified 316SS Industrial Process Gauge Pressure Sensor

Rosemount 3051CG4A22A1AB4M5 High-Range Coplanar Gauge Pressure Transmitter with SIL2 Safety Rating

Coplanar Gauge Pressure Design & Core Operational Advantages

Professional Coplanar Gauge Pressure Sensing Architecture

Differentiated from differential and absolute pressure models, the Rosemount 3051CG4A22A1AB4M5 adopts a dedicated coplanar gauge pressure design, measuring process pressure relative to real-time atmospheric pressure. The industry-proven coplanar base structure combines compact integration with structural rigidity, supporting direct manifold mounting without extra adapters. This exclusive design eliminates assembly gaps and reduces potential leak points, delivering more reliable static pressure monitoring than traditional threaded gauge transmitters in high-pressure industrial scenarios.

Ultra-High Range Heavy-Duty Adaptability

Equipped with a premium Grade 4 high-span sensor module, the Rosemount 3051CG4A22A1AB4M5 is engineered for ultra-high industrial pressure working conditions that exceed standard and medium-range transmitter limits. It maintains stable linear output and precise measurement accuracy under sustained high-pressure load and frequent pressure fluctuations, perfectly matching heavy-process industrial monitoring requirements and filling the application gap of conventional low-range gauge pressure transmitters.

Full Model Code Suffix Breakdown for Rosemount 3051CG4A22A1AB4M5

Emerson Official Factory Configuration Decoding

Every suffix segment of the Rosemount 3051CG4A22A1AB4M5 corresponds to fixed factory-calibrated hardware, range grade, material specification, communication protocol and safety certification. All parameters comply with global Emerson coding standards, requiring no field modification for accurate project selection, system integration and equipment replacement.

• 3051: Flagship high-precision smart pressure transmitter platform with industry-leading stability, anti-interference capability and comprehensive diagnostic functions

• CG: Coplanar Gauge Pressure type, specialized for atmospheric-referenced industrial gauge pressure monitoring with integrated coplanar mounting structure

• 4: Grade 4 ultra-high pressure range, customized for heavy-duty high-span industrial pressure measurement scenarios

• A: Standard 4-20mA analog output with superimposed HART 7 digital communication for dual analog-digital signal transmission

• 22: Dual 316 stainless steel process and isolation diaphragms, providing universal corrosion resistance for general industrial process media

• A: Polyurethane-coated aluminum field housing with superior electromagnetic shielding and environmental protection performance

• 1: Standard general-purpose industrial grade for conventional non-hazardous field installation environments

• AB4: Standard terminal block assembly and 1/2-inch NPT conduit port for global industrial wiring compatibility

• M5: SIL2 functional safety certification compliant with IEC 61508 international industrial safety integrity standards

Ultra-High Range Measurement Performance & Long-Term Stability

High-Precision Sensing for Heavy-Duty Pressure Conditions

The Rosemount 3051CG4A22A1AB4M5 achieves outstanding reference accuracy up to ±0.075% of calibrated span under ultra-high pressure working environments. The upgraded high-strength capacitive sensing element effectively resists high-pressure media impact and structural deformation, ensuring full-scale linear signal output throughout the entire ultra-wide pressure range. It provides repeatable, high-precision gauge pressure data for high-load pipeline pressure regulation, industrial vessel pressure monitoring and heavy equipment operational condition tracking.

Enhanced Low-Drift & Anti-Fatigue Runtime Performance

Optimized for long-term high-pressure continuous operation, the Rosemount 3051CG4A22A1AB4M5 integrates intelligent multi-dimensional temperature compensation and mechanical anti-fatigue structure. It effectively suppresses measurement drift caused by sustained high-pressure load, ambient temperature fluctuations and long-term mechanical vibration. The enhanced structural durability extends calibration cycles significantly, reducing on-site maintenance frequency and lowering overall operational costs for heavy industrial production systems.

316SS Wetted Structure & Complex Environment Adaptability

Corrosion-Resistant & High-Pressure Resistant Material Properties

Adopting dual 316 stainless steel diaphragms as core wetted components, the Rosemount 3051CG4A22A1AB4M5 delivers excellent oxidation resistance, medium corrosion resistance and high-pressure impact resistance. The premium industrial alloy structure withstands long-term scouring of high-pressure industrial gas, process water and mildly corrosive fluids, avoiding sensor performance degradation or structural damage and adapting to long-cycle heavy industrial process operation.

Rugged Harsh Environment Tolerance

The transmitter supports stable 24/7 operation within a wide ambient temperature range and 5%–95% non-condensing humidity. The reinforced aluminum housing isolates on-site electromagnetic interference, dust and moisture erosion, and resists mechanical vibration and impact in high-intensity industrial workshops, outdoor process stations and high-pressure pipeline installation environments.

HART 7 Smart Communication & Intelligent Diagnostic Functions

Dual Analog-Digital Signal Transmission System

The Rosemount 3051CG4A22A1AB4M5 outputs standard linear 4-20mA analog signals, perfectly matching DCS and PLC automation system signal acquisition standards for real-time ultra-high range gauge pressure data transmission. The built-in HART 7 protocol supports remote parameter configuration, range reset, calibration data query and historical trend analysis, realizing efficient remote asset management and equipment debugging.

Full-Cycle Intelligent Fault Self-Diagnostics

The integrated intelligent diagnostic system continuously monitors sensor operating status, circuit integrity and signal stability in real time. It automatically identifies abnormal conditions including sensor drift, circuit failure, overpressure impact and signal loss, and outputs standardized fault alarms instantly. This function helps maintenance teams quickly locate and resolve faults, avoid abnormal process control actions and minimize unplanned production downtime.

SIL2 Safety Performance & Industrial Application Values

Safety-Critical Process Loop Adaptability

With authoritative SIL2 functional safety certification, the Rosemount 3051CG4A22A1AB4M5 is fully applicable to safety instrumented systems and high-pressure process interlock loops. The professional safety-oriented circuit and structural design reduces random and systematic failure risks, meeting stringent safety control standards for high-load, high-risk industrial process operation.

Core Selection Advantages & Typical Industrial Scenarios

Industrial facilities prioritize the Rosemount 3051CG4A22A1AB4M5 for its exclusive ultra-high range coplanar gauge pressure capability, heavy-load structural durability and safety-compliant performance. The integrated coplanar mounting design simplifies system installation and reduces leakage risks, while high stability and intelligent diagnosis lower long-term maintenance costs. Typical applications include high-pressure petrochemical pipeline monitoring, thermal power heavy-duty equipment pressure control, industrial high-pressure vessel status detection, and heavy-process factory safety-critical pressure loop monitoring.
