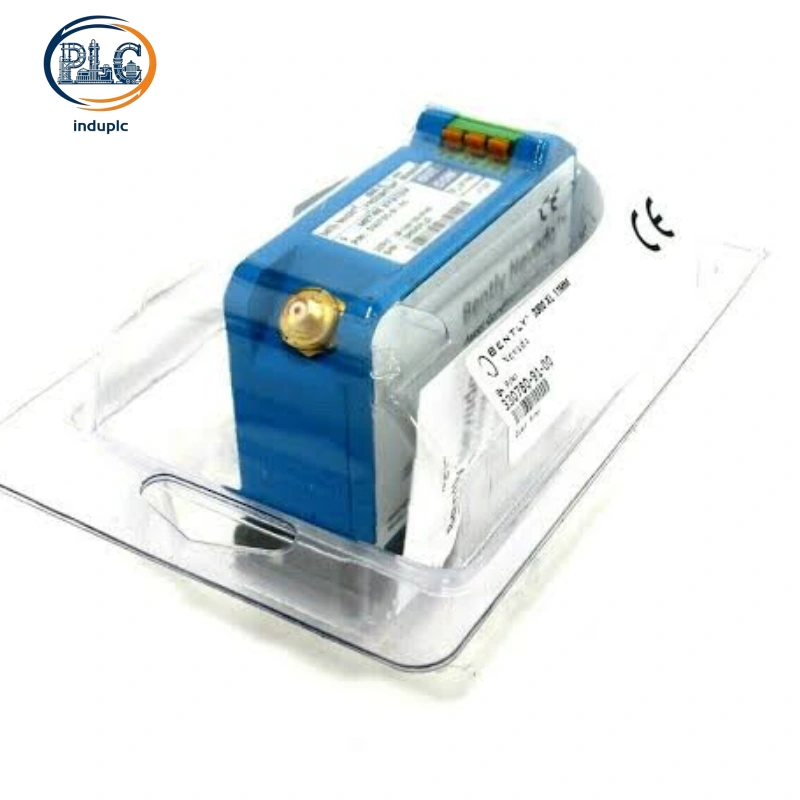

Bently Nevada 330780-91-00 3300 XL Proximitor Sensor, 9m DIN Rail 11mm

Bently Nevada 330780-91-00 3300 XL 11mm Proximitor Sensor

Order Code Interpretation

330780

Base 3300 XL series proximitor sensor core hardware, designed exclusively for 11mm eddy-current proximity probe systems for rotating machinery vibration and position measurement.

91

Specifies 9-meter full factory integrated system length and standard 35mm DIN rail mounting structure for cabinet internal installation.

00

Standard factory configuration without custom modifications, suitable for general industrial machinery monitoring applications.

Datasheet Core Technical Parameters

Bently Nevada 330780-91-00 delivers fixed sensitivity of 3.94 V/mm within 0.5mm to 4.5mm linear measurement range. The sensor operates at -17.5 Vdc to -26 Vdc power supply with 12mA maximum current draw. Working temperature ranges from -35°C to +85°C, supporting 0Hz to 10kHz stable frequency response. DIN rail mounting design ensures reliable signal output for long-term industrial monitoring.

Core Selection Advantages

Factory Integrated 9m System Length Preserves Signal Accuracy

Bently Nevada 330780-91-00 adopts one-piece 9-meter factory cable assembly. No field splicing is required, eliminating high-frequency vibration signal attenuation and distortion. The integrated structure guarantees consistent data transmission for remote cabinet monitoring layouts.

Standard DIN Rail Mount Simplifies Deployment & Maintenance

Bently Nevada 330780-91-00 features universal DIN rail clip-on installation. The tool-free mounting method accelerates on-site commissioning and unit replacement. Compact size saves cabinet space and maintains stable operation under industrial vibration and temperature variation.

Industrial Application Scenarios

Steam Turbine Condition Monitoring

Bently Nevada 330780-91-00 performs non-contact radial vibration and thrust position detection for turbine bearing systems. Real-time precise data supports equipment alarm and trip protection logic for power generation units.

Reciprocating Compressor Monitoring

This sensor implements rod drop measurement and keyphasor signal acquisition for petrochemical compressors. Continuous monitoring captures early mechanical wear and avoids unexpected production shutdowns.
