1. Core Technical Parameters

Supply Voltage：24 VDC

Operating Current：65 mA

Communication Standard：Modbus RTU

Max Bus Distance：1200 m

Available Baud Rates：1200–500000 bit/s

Operating Temperature：-20℃ ~ +70℃

Mounting Form：DIN rail & built-in drive slot

2. Compatibility & Expandability

Same-brand Compatibility

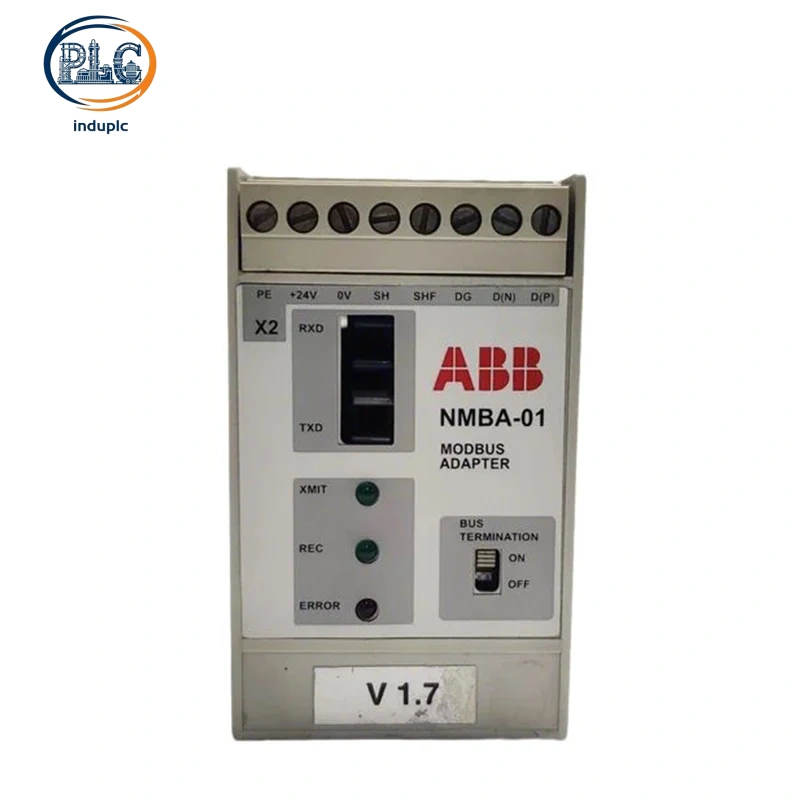

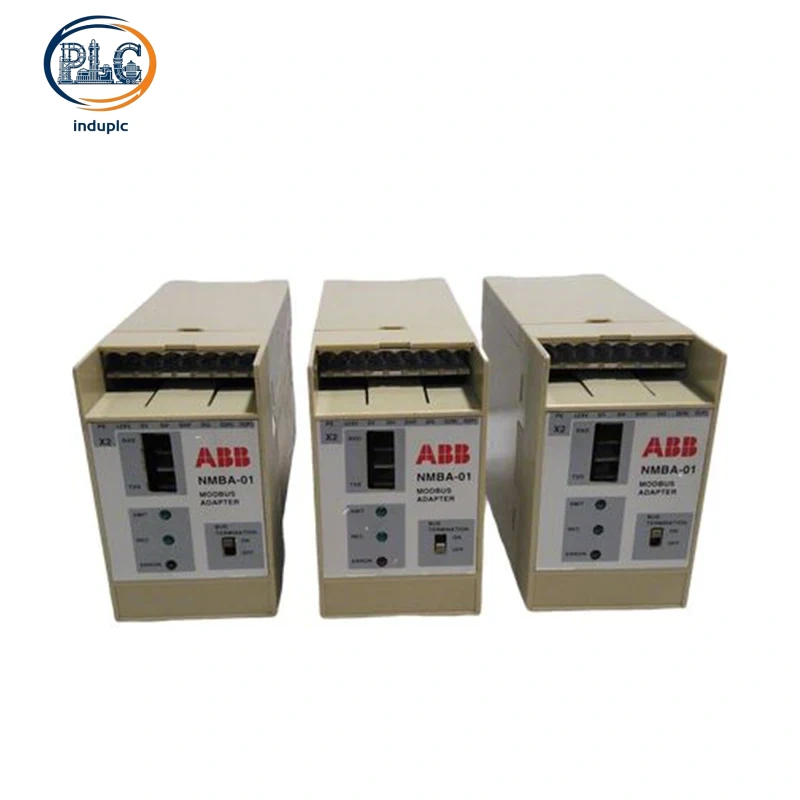

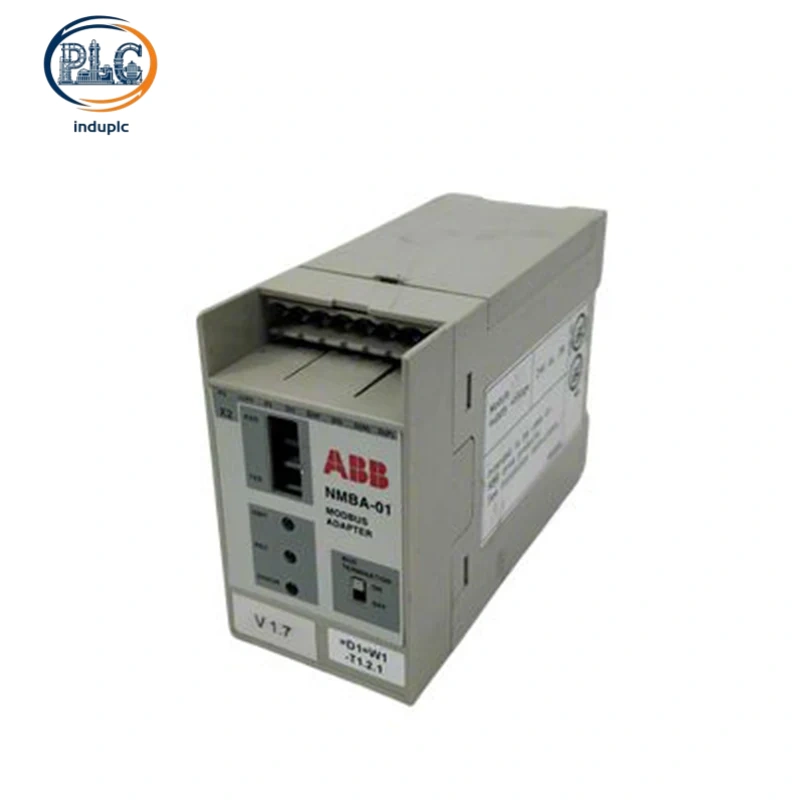

ABB NMBA-01 is a dedicated Modbus communication adapter built for ABB industrial drive products. Maintenance engineers install multiple ABB NMBA-01 inside ACS600 and ACS800 inverter cabinets to add Modbus data links for factory motor control groups. ABB NMBA-01 connects directly to internal drive fiber ports and exchanges operating parameter data with ABB DCS800 DC drives without extra signal transfer terminals. Local parameter adjustment via drive control panels lets ABB NMBA-01 deliver steady real-time communication with ABB AC800M master controllers on production floors.

Cross-brand Compatibility

Specialized fiber internal port design blocks direct hardwired connection of ABB NMBA-01 with non-ABB frequency converters. External protocol signal converters are required to link ABB NMBA-01 to third-party PLC hosts made by Siemens or Schneider. Global universal Modbus RTU serial protocol enables ABB NMBA-01 to transmit motor running signals to most aftermarket industrial control panels with no internal circuit rewiring.

3. Lifecycle Cost Analysis

Service cycle of ABB NMBA-01 lasts 10 years, exchange rate:1USD=7.2CNY, purchase and installation fees are excluded from cost settlement

Annual routine maintenance cost: Serial port signal check and dust removal for ABB NMBA-01 costs 24 USD per year, total 10-year maintenance expense: 240 USD

Spare part replacement cost: Core communication circuit failure of ABB NMBA-01 appears roughly once every 9 years, single spare component price:336 USD, total replacement expense within 10 years:336 USD

Retrofit expense saving: Original drive internal wiring can be fully reused for ABB NMBA-01 during equipment upgrade, saving 188 USD extra modification cost compared with incompatible substitute communication adapters

Total cumulative running cost for single ABB NMBA-01 across ten service years: 388 USD
