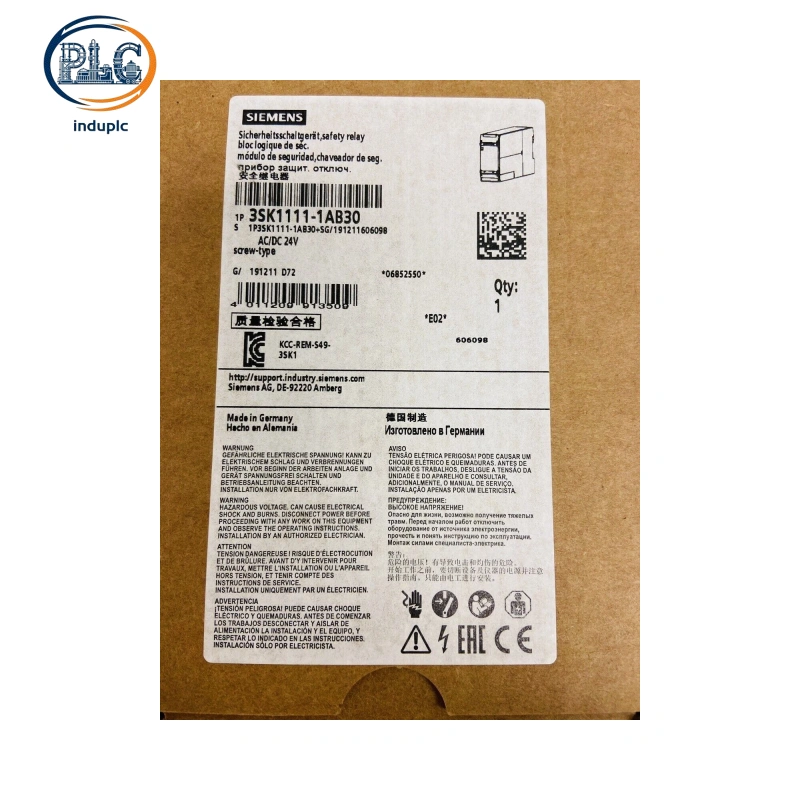

Siemens 3SK1111-1AB30 SIRIUS Safety Relay, 24V AC/DC 3NO+1NC PL e SIL3

1. Product Overview

Siemens 3SK1111-1AB30 is a high-reliability standard safety relay from the renowned Siemens SIRIUS 3SK1 series, designed for universal machinery safety protection and industrial safety circuit monitoring. This compact DIN rail-mount safety module supports both single-channel and dual-channel safety signal input, delivering top-tier safety performance compliant with PL e / Cat.4 / SIL3 international safety standards. Featuring a flexible 3NO safety contact + 1NC signal contact configuration and universal 24V AC/DC wide voltage supply, the 3SK1111-1AB30 adapts to emergency stop circuits, safety door interlock systems, and general mechanical safety interlock control. With industrial-grade anti-interference capability, built-in circuit self-diagnosis, and intuitive DIP switch parameter configuration, it serves as a cost-effective, standardized core safety component for automated manufacturing, process industry, and intelligent factory safety systems.

2. Complete Technical Specifications

2.1 Electrical Performance & Safety Ratings

The Siemens 3SK1111-1AB30 adopts universal 24V AC/DC wide-range power supply, perfectly matching global industrial low-voltage control systems with strong voltage fluctuation adaptability. It integrates 3 normally open (3NO) safety output contacts and 1 normally closed (1NC) signal feedback contact, providing multi-loop synchronous safety control and equipment status monitoring functions. This safety relay achieves the highest industrial safety certification grades, including Performance Level e (PL e) and Category 4 per ISO 13849-1, and SIL3 functional safety level per IEC 61508. With low power consumption of only 2W and stable contact switching performance, it supports long-term uninterrupted industrial operation without signal drift or output failure.

2.2 Signal Detection & Functional Logic

Equipped with dual sensor input channels, the 3SK1111-1AB30 supports freely switchable single-channel and dual-channel monitoring modes to adapt to different equipment risk levels. It features built-in cross-circuit detection and full-circuit fault diagnosis functions, which can automatically identify wiring open circuit, short circuit, and signal abnormality in real time. The module integrates adjustable reset logic, supporting automatic reset and supervised manual reset modes configured via onboard DIP switches. Once safety anomalies such as emergency stop trigger or safety door opening are detected, the relay instantly cuts off safety outputs to lock equipment operation, effectively eliminating accidental startup risks and ensuring on-site personnel and mechanical safety.

2.3 Mechanical Structure & Environmental Parameters

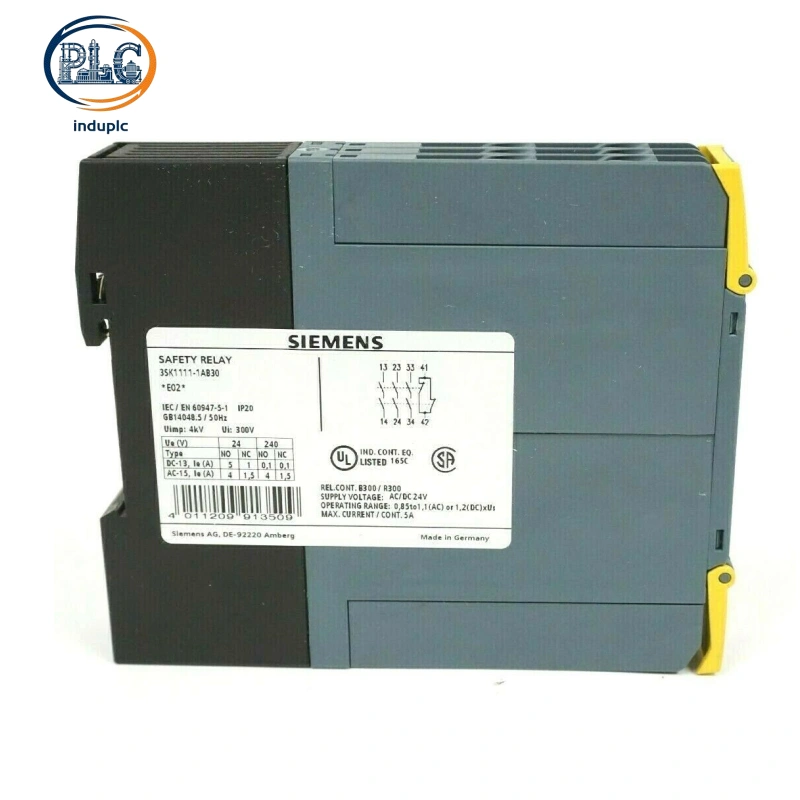

The Siemens 3SK1111-1AB30 features an ultra-slim 22.5mm narrow-body industrial housing, effectively saving internal control cabinet space and optimizing wiring layout. It adopts standard 35mm DIN rail mounting for tool-free quick installation, disassembly and replacement, greatly improving on-site construction and maintenance efficiency. Equipped with reliable screw-type terminals, it ensures stable and anti-loose wiring connection for long-term vibration industrial environments. The module has an IP20 finger-safe protection rating and a wide operating temperature range of -25°C to +60°C, with excellent vibration and shock resistance, adapting to complex and harsh factory production conditions.

3. Core Product Features & Advantages

3.1 Universal AC/DC Voltage Compatibility & Wide Adaptability

Different from single-voltage safety relays, the Siemens 3SK1111-1AB30 supports 24V AC and DC universal power supply, covering most global industrial control power specifications. It eliminates model selection troubles caused by different power supply types, unifies on-site spare part standards, and reduces enterprise procurement and inventory costs. The universal voltage design makes it suitable for cross-regional engineering projects and standardized automated equipment supporting applications.

3.2 Multi-Contact Output Improves System Expandability

With a professional 3NO+1NC contact combination, this safety relay outperforms conventional dual-contact safety relays in control capability. Three independent safety NO contacts can synchronously drive multiple safety loops such as contactors and solenoid valves, while the single NC signal contact provides real-time equipment status feedback for upper monitoring systems. It avoids additional relay expansion in most standard safety scenarios, simplifies circuit design, reduces system failure points, and improves the overall stability of safety interlock systems.

3.3 Intelligent Fault Diagnosis & Visual Status Monitoring

The 3SK1111-1AB30 integrates comprehensive self-diagnosis functions to monitor channel faults and wiring abnormalities in real time. Multiple onboard LED indicator lights clearly display power status, input signal status, output working status and fault alarm information, enabling technicians to quickly locate and troubleshoot faults without professional detection tools. The active fault detection mechanism eliminates hidden dangers caused by undetected circuit aging or wiring errors, significantly improving equipment operation safety and maintenance efficiency.

3.4 Modular Design & High Cost-Performance Deployment

Adopting Siemens mature SIRIUS series industrial modular design, the 3SK1111-1AB30 features strong electromagnetic anti-interference ability, shock resistance and long service life. The integrated multi-function design replaces multiple discrete safety components, simplifying cabinet wiring and reducing engineering costs. The intuitive DIP switch configuration allows fast function switching and parameter adjustment without program programming, lowering technical thresholds for system integration and on-site debugging, making it the preferred cost-effective safety solution for standard machinery safety transformation and new construction projects.

4. Industrial Application Scenarios

The Siemens 3SK1111-1AB30 safety relay is widely applicable to standardized safety protection scenarios in various industrial automation fields. In discrete manufacturing, it is used for emergency stop protection, safety door interlock control, and mechanical limit protection of automated assembly lines, packaging machinery, stamping and cutting equipment. In process industries such as petrochemical and new energy, it provides reliable safety interlock and fault locking protection for production auxiliary equipment and linkage devices. In intelligent factory renovation and standardized equipment upgrading projects, it serves as a universal safety control unit to help enterprises meet ISO 13849 and IEC 61508 industrial safety specifications, realizing safe, stable and standardized automated production operation.

5. Frequently Asked Questions (FAQ)

5.1 What safety level does Siemens 3SK1111-1AB30 support?

The Siemens 3SK1111-1AB30 reaches top industrial safety grades, including PL e / Category 4 (ISO 13849-1) and SIL3 (IEC 61508), fully meeting high-risk machinery functional safety protection requirements.

5.2 What is the contact configuration of 3SK1111-1AB30?

This safety relay adopts a practical 3NO safety output + 1NC signal output structure, supporting multi-loop synchronous safety control and real-time equipment status signal feedback, suitable for complex interlock control systems.

5.3 What power supply does the 3SK1111-1AB30 adopt?

It supports universal 24V AC/DC wide-range power supply, compatible with both AC and DC control circuits, with strong adaptability to industrial power supply fluctuations.

5.4 What equipment can the 3SK1111-1AB30 match?

It is perfectly compatible with emergency stop buttons, safety door interlock switches, safety light curtains and other mainstream safety field devices, widely used for standard machinery safety circuit monitoring and protection.
