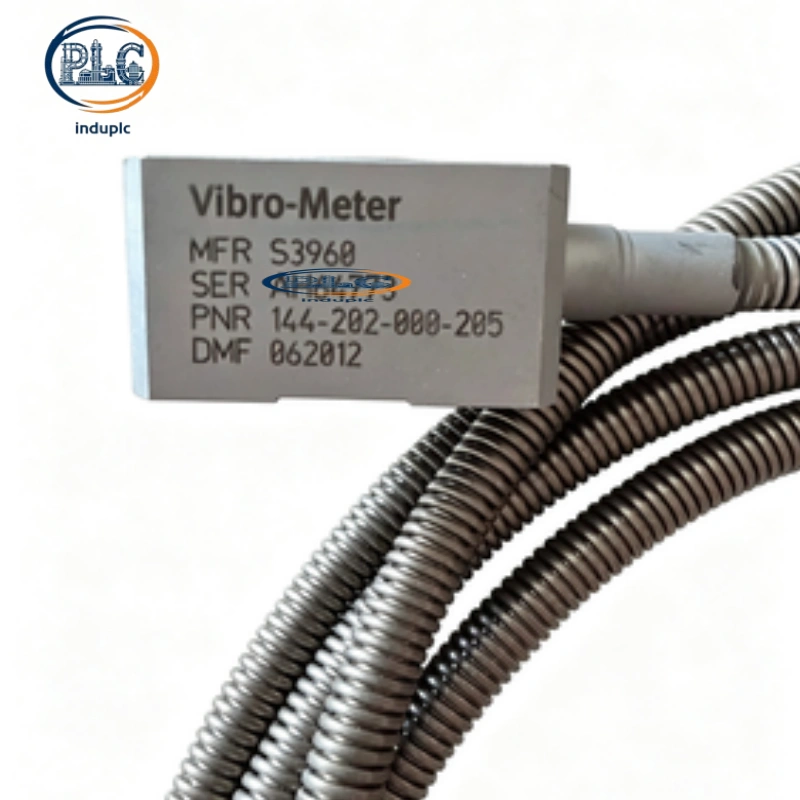

VIBRO-METER CA202 144-202-000-205 Piezoelectric Accelerometer Vibration Sensor

VIBRO-METER CA202 144-202-000-205 Piezoelectric Accelerometer

VIBRO-METER CA202 144-202-000-205 acquires high-precision vibration measurement data.

This piezoelectric accelerometer supports full-range industrial vibration detection.

VIBRO-METER CA202 144-202-000-205 adapts to extreme industrial operating environments.

Full Datasheet Technical Parameters

Electrical & Performance Specifications

Nominal Sensitivity: 100 pC/g ±5% standard industrial tolerance

Frequency Response: 0.5 Hz to 6000 Hz (±5% flat tolerance)

Dynamic Measurement Range: 0.01 g to 400 g peak value

Linearity Error: ≤±1% across full measurement scale range

Transverse Sensitivity: ≤3% tested at 15 Hz and 5 g condition

Output Type: 2-wire charge output with external amplifier matching

Mechanical & Environmental Specifications

Transient Overload Capacity: 1000 g peak shock resistance

Operating Temperature Range: -55°C to +260°C continuous operation

Sensor Weight: 250 g nominal standalone unit weight

Cable Specification: 2-pole twisted shielded low-noise cable

Mounting Standard: M6 screw mounting with 15 Nm fixed torque

Core Functional Features

Stable Signal Acquisition Structure

Symmetrical internal element maintains consistent vibration signal output.

Differential output structure reduces onsite signal interference issues.

Internal case insulation improves long-term operational stability.

Durable Industrial Structural Design

Hermetically welded stainless steel case ensures full sealing performance.

Integrated stainless steel hose protects internal low-noise cables.

Explosion-proof certification supports hazardous area deployment.

Industrial Monitoring Applications

High-Temperature Machinery Monitoring

The accelerometer monitors vibration signals for high-temperature turbines.

The device captures oscillation data for industrial compressor systems.

The sensor tracks mechanical vibration for power generation equipment.

Hazardous Area Condition Detection

The unit performs vibration testing for explosive industrial environments.

The transducer supports fault tracking for continuous process machinery.

The module delivers reliable data for industrial predictive maintenance work.
