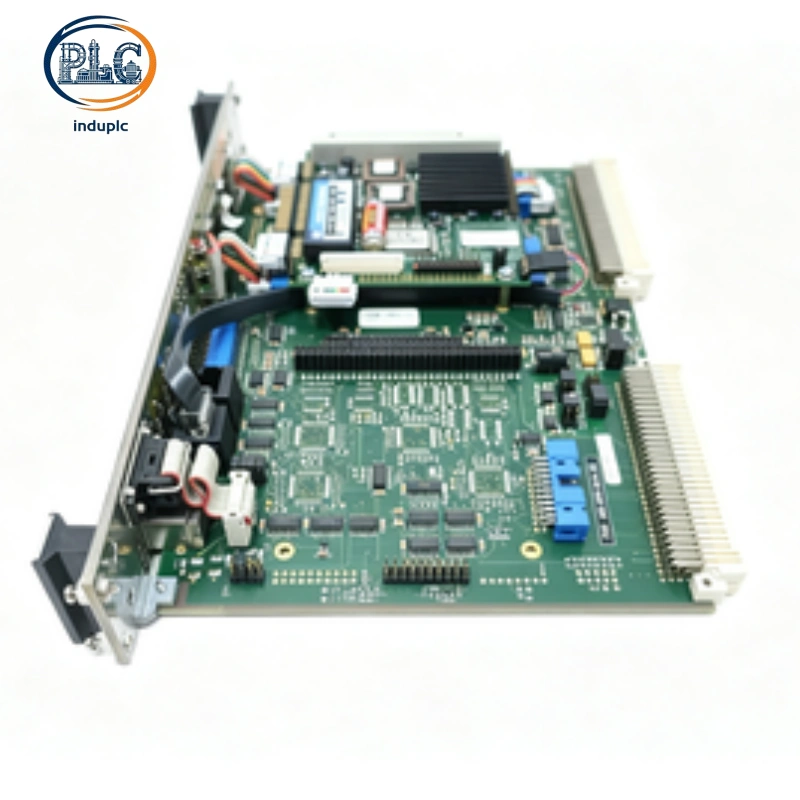

VIBRO-METER CPUM 200-595-063-314 VM600 Display CPU Processor Module

VIBRO-METER CPUM 200-595-063-314 CPU Processor Module

VIBRO-METER CPUM 200-595-063-314 executes core control for VM600 monitoring racks.

This embedded CPU module integrates display and unified rack configuration functions.

VIBRO-METER CPUM 200-595-063-314 supports standard industrial fieldbus protocols.

Full Datasheet Technical Parameters

Core Processing Specifications

Processor Type: Industrial embedded high-speed processing chip

System Configuration: One-shot centralized rack card parameter setup

System Diagnosis: Real-time rack hardware self-diagnosis function

Communication & Display Specifications

Ethernet Interfaces: Dual redundant industrial network transmission ports

Serial Interfaces: Dual RS-232 and RS-485 communication channels

Field Protocols: Modbus RTU, Modbus TCP, PROFINET industrial standard

Display Unit: Built-in front panel visual status display screen

Mechanical & Environmental Specifications

Mounting Structure: Hot-swappable 6U rack-mounted card design

Module Dimensions: 262mm × 40mm × 187mm standard rack size

Unit Weight: 0.40kg lightweight industrial module structure

Power Consumption: Less than 10W nominal operating power load

Operating Temperature: -20°C to +60°C continuous working range

Ambient Humidity: 0% to 90% non-condensing environmental tolerance

Core Functional Features

Integrated Visual Monitoring Design

Front panel display shows real-time rack status and alarm threshold data.

Visual interface simplifies on-site inspection and routine equipment checks.

Built-in screen eliminates reliance on external display equipment.

Reliable Rack System Management

Centralized configuration unifies parameters of MPC4 and AMC8 cards.

Real-time self-diagnosis detects power and backplane hardware faults.

Redundant communication ports maintain stable system data transmission.

Industrial Monitoring Applications

Turbomachinery Protection System Deployment

The CPU module operates core logic for steam turbine monitoring racks.

The processing unit manages vibration data for gas turbine equipment sets.

The hardware supports safety interlock control for generator systems.

Process Industry Condition Monitoring

The module enables data gateway connection with DCS and PLC systems.

The unit transmits on-site monitoring data to upper control platforms.

The hardware sustains long-term operation of factory protection systems.
