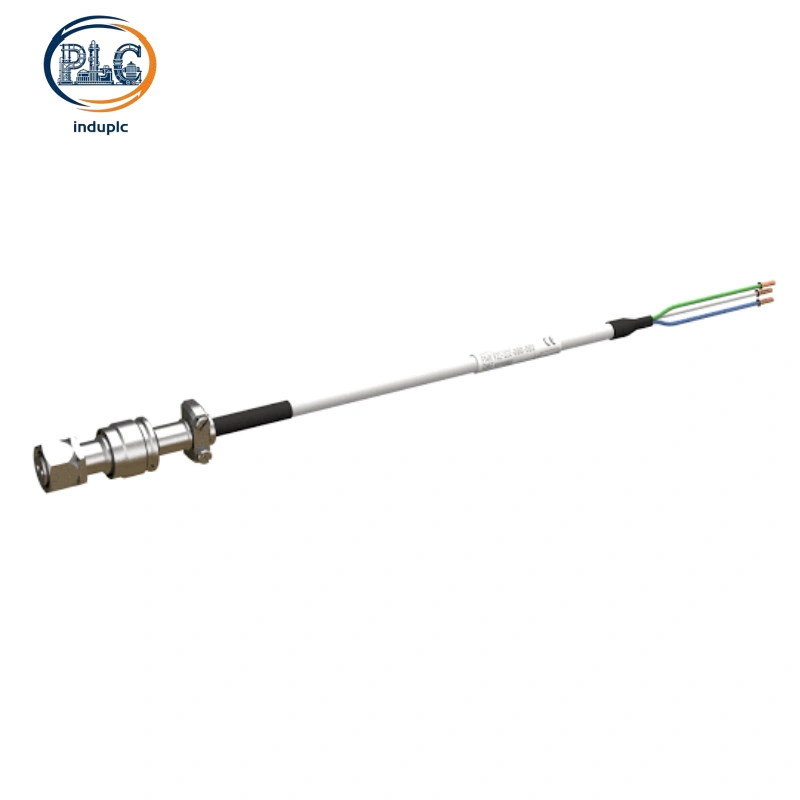

VIBRO-METER EC222 922-222-000-002 Eddy Current Sensor Probe

VIBRO-METER EC222 922-222-000-002 Eddy Current Probe

VIBRO-METER EC222 922-222-000-002 captures non-contact shaft displacement data.

This eddy current probe delivers precise dynamic vibration measurement results.

VIBRO-METER EC222 922-222-000-002 fits standard turbomachinery monitoring systems.

Full Datasheet Technical Parameters

Electrical & Measurement Specifications

Nominal Sensitivity: 8 mV/µm fixed industrial measurement sensitivity

Effective Measurement Range: 0 mm to 2 mm linear detection scale

Frequency Response: DC to 15 kHz stable signal bandwidth range

Linearity Error: ≤2% full scale across entire working range

Temperature Stability: Low drift for long-term thermal operation

Mechanical Specifications

Probe Diameter: 5 mm compact miniature probe body size

Mounting Thread: M6 × 1 standard industrial fixing thread

Integral Cable Length: 5 meter low-noise coaxial signal cable

Unit Weight: 0.18 kg lightweight probe assembly structure

Environmental Specifications

Operating Temperature: -40°C to +150°C continuous working range

Shock Resistance: 10 g peak mechanical impact tolerance

Vibration Resistance: 3 g peak resonant vibration endurance

Protection Grade: IP66 dust and moisture ingress protection rating

Core Functional Features

Compact Precision Measuring Structure

Miniature probe design adapts to narrow equipment installation spaces.

Fixed sensitivity delivers repeatable industrial measurement data.

Linear output mode simplifies signal matching with monitor hardware.

Stable Field Operational Performance

Low temperature drift maintains accuracy in fluctuating thermal environments.

Shielded cable structure reduces external signal interference noise.

Rigid probe construction resists onsite mechanical vibration impacts.

Industrial Monitoring Applications

Fine Displacement Condition Monitoring

The eddy current probe detects minor shaft displacement variations.

The measuring assembly tracks subtle radial vibration of rotating rotors.

The sensing unit supports precision machinery status evaluation work.

Rotating Equipment Protection Systems

The probe matches turbine auxiliary equipment monitoring circuits.

The assembly serves condition tracking for small industrial compressors.

The unit enables early fault warning for high-speed rotating machinery.
