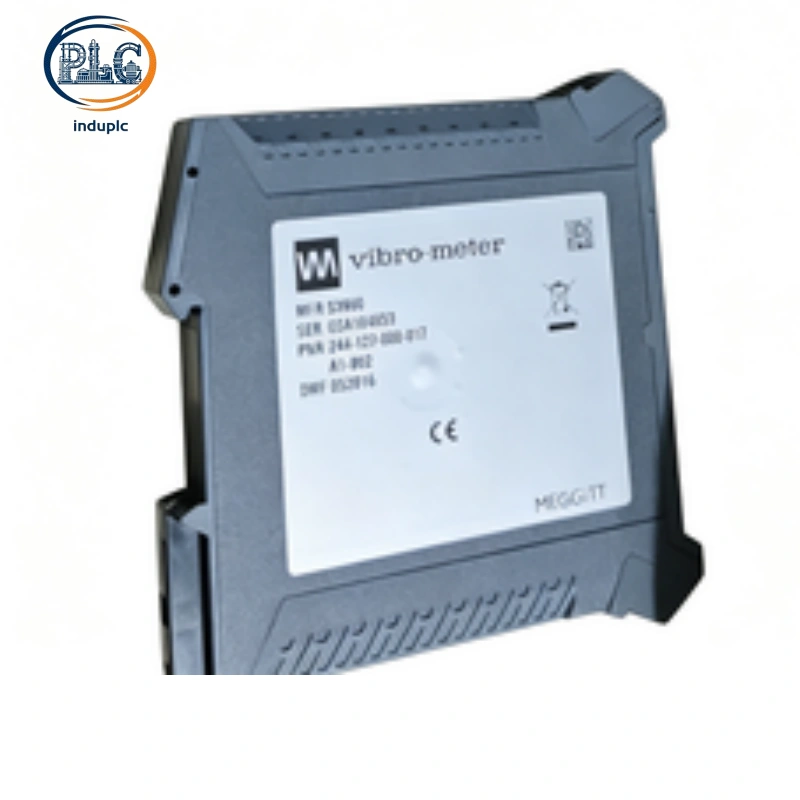

VIBRO-METER GSI127 244-127-000-017 A1-B02 Galvanic Separation Unit

VIBRO-METER GSI127 244-127-000-017 Galvanic Separation Unit

VIBRO-METER GSI127 244-127-000-017 separates analog sensor signal circuits.

This separation unit conditions vibration signals for industrial monitoring systems.

VIBRO-METER GSI127 244-127-000-012 supports isolated long-distance signal transmission.

Full Datasheet Technical Parameters

Electrical Specifications

Supply Voltage: 24 V DC ±20% industrial standard power input

Max Supply Current: 150 mA maximum operating current draw

Typical Power Consumption: 3.6 W standard module power load

Galvanic Isolation Voltage: 2500 V AC continuous isolation rating

Isolation Resistance: ≥10 GΩ tested at 500 V DC working voltage

Isolation Capacitance: ≤20 pF low parasitic capacitance value

Signal Sensitivity Drift: ≤50 ppm/°C temperature stability rating

Frequency Rejection Range: 10 Hz to 400 Hz signal filtering band

Noise Rejection Ratio: ≥60 dB industrial anti-noise performance

Output Impedance: 20 Ω short-circuit protected signal output

Mechanical Specifications

Mounting Method: Standard 35mm DIN rail modular installation

Connector Type: Detachable screw terminal wiring structure

Environmental Specifications

Operating Temperature: 0°C to +70°C continuous working range

Storage Temperature: -40°C to +85°C equipment storage tolerance

Operating Humidity: 90% maximum non-condensing ambient level

Storage Humidity: 95% maximum non-condensing environmental level

Industrial Monitoring Applications

Vibration Signal Isolation Processing

The separation unit processes analog signals from vibration sensors.

The module cleans signal output for charge amplifier equipment sets.

The unit stabilizes data transmission for eddy current probe systems.

Long-Distance Industrial Signal Transmission

The device maintains signal integrity for remote field monitoring points.

The assembly eliminates ground loop errors in multi-device circuits.

The module supports stable operation for turbomachinery protection racks.

Core Functional Features

Precision Signal Conditioning Performance

Multi sensitivity options match diverse industrial signal standards.

Low temperature drift preserves data accuracy across thermal shifts.

High noise rejection filters onsite electromagnetic interference.

Reliable Circuit Isolation Protection

High isolation resistance blocks cross-circuit signal contamination.

Short-circuit protection prevents hardware damage during faults.

Detachable terminals simplify routine module replacement work.
