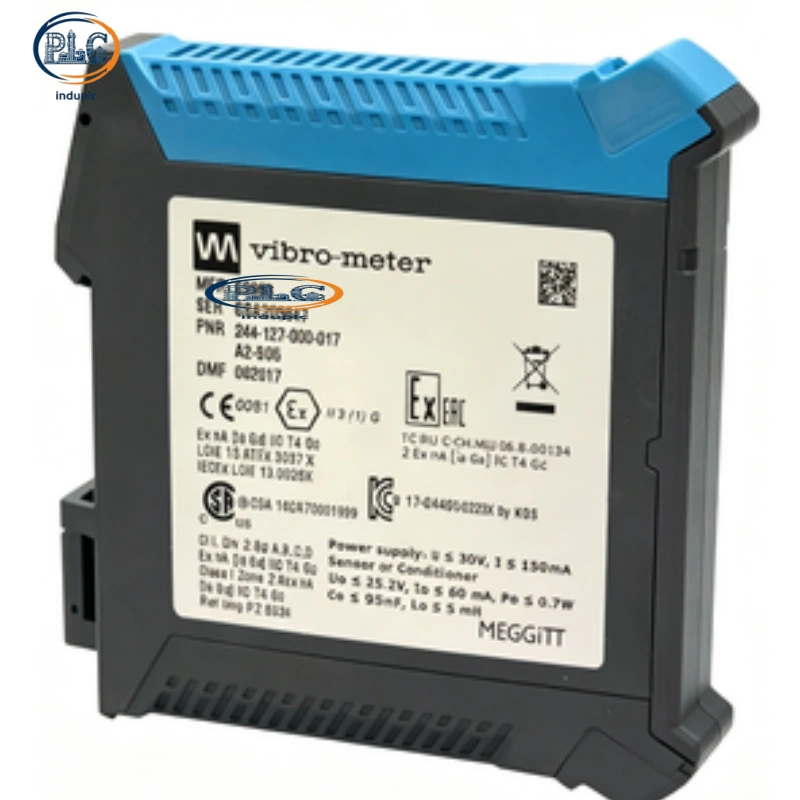

VIBRO-METER GSI127 244-127-000-017 A2-B05 Galvanic Separation Unit

VIBRO-METER GSI127 244-127-000-017 Galvanic Separation Unit

VIBRO-METER GSI127 244-127-000-017 separates analog sensor signal circuits effectively.

This industrial module delivers precise conditioning for vibration detection signals.

VIBRO-METER GSI127 244-127-000-017 stabilizes isolated field signal transmission.

Full Datasheet Technical Parameters

Electrical Specifications

Supply Voltage: 10 V DC to 30 V DC universal industrial power input

Maximum Operating Current: 150 mA steady working current rating

Dielectric Isolation Voltage: 4000 V RMS sensor-side circuit isolation

Floating Output Isolation: 50 V RMS power and signal path insulation

Isolation Resistance: ≥10 GΩ measured under 500 V DC test voltage

Parasitic Isolation Capacitance: ≤20 pF low interference circuit design

Output Offset Temperature Drift: ≤2 mV/°C stable thermal performance

Sensitivity Temperature Drift: ≤50 ppm/°C consistent signal output

Low Frequency Noise Rejection: ≥60 dB within 10 Hz to 400 Hz band

High Frequency Noise Rejection: ≥30 dB within 400 Hz to 100 kHz band

Signal Output Impedance: 20 Ω short-circuit protected terminal design

Fixed Transfer Function: -1 V/V conversion ratio with ±1% tolerance

Rated Output Load: 0 V to 20 V DC output for 10 kΩ load resistance

Mechanical Specifications

Mounting Method: Standard 35mm DIN rail modular installation structure

Wiring Terminal Type: Detachable screw connection industrial terminals

Enclosure Protection Grade: IP20 dust-proof safety protection standard

Environmental Specifications

Continuous Operating Temperature: -20°C to +70°C working range

Equipment Storage Temperature: -40°C to +85°C storage tolerance

Operating Ambient Humidity: 0% to 90% non-condensing humidity

Storage Ambient Humidity: 0% to 95% non-condensing humidity

Industrial Monitoring Applications

Rotating Machinery Signal Conditioning

The separation unit processes signals from turbine vibration sensors.

The module refines detection data from eddy current probe assemblies.

The unit supports stable operation of industrial protection systems.

Field Remote Signal Transmission

The device maintains clean signals for long-distance field transmission.

The assembly eliminates ground loop faults in multi-sensor circuits.

The module adapts to petrochemical and process industry sites.

Core Functional Features

Reliable Circuit Isolation Performance

Dual isolation layers block cross-circuit signal interference effectively.

High insulation resistance guarantees stable long-term circuit operation.

Floating output structure removes systemic ground loop errors.

Precision Anti-Interference Signal Processing

Dual-band noise rejection filters diverse onsite electromagnetic noise.

Low thermal drift preserves signal accuracy under temperature shifts.

Fixed conversion ratio ensures repeatable industrial signal output.
