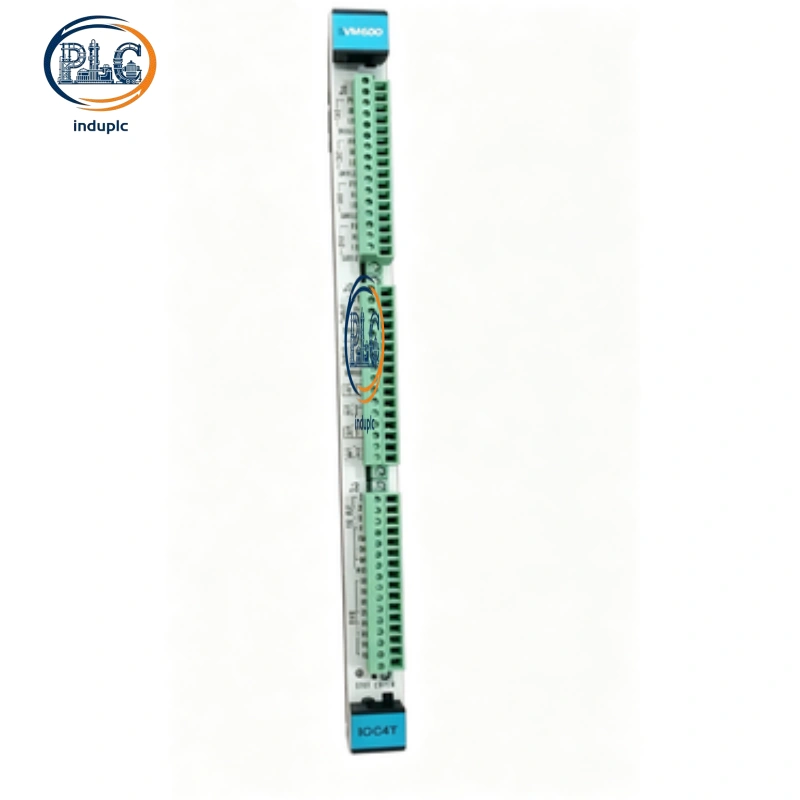

VIBRO-METER IOC4T 200-560-000-114 VM600 I/O Interface Card

VIBRO-METER IOC4T 200-560-000-114 I/O Interface Card

VIBRO-METER IOC4T 200-560-000-114 processes industrial sensor input and output signals.

This modular I/O card integrates multi-channel signal conversion functions.

VIBRO-METER IOC4T 200-560-000-114 matches VM600 monitoring rack systems.

Full Datasheet Technical Parameters

Channel & Signal Specifications

Analog Channel Count: 4 independent configurable signal channels

ADC Resolution: 24-bit delta-sigma high precision conversion chip

Dynamic Signal Range: 110 dB stable signal acquisition coverage

Filter Mode: 8-pole elliptic programmable anti-aliasing filter

Selectable Signal Output: 0-10 V voltage or 4-20 mA current mode

Relay Electrical Specifications

Rated Relay Voltage: 250 V AC industrial contact voltage rating

Rated Relay Current: 5 A AC maximum continuous contact current

Maximum Breaking Capacity: 1250 VA non-protected contact load

Operate Time: 8 ms typical relay response activation duration

Release Time: 8 ms typical relay signal reset duration

Bounce Time: 6 ms maximum contact vibration stabilization time

Mechanical & Environmental Specifications

Module Weight: 0.25 kg lightweight rack-mounted unit weight

Operating Voltage: 24 V DC standard industrial power supply

Operating Temperature: -20°C to +60°C continuous working range

Dielectric Withstand Voltage: 4000 V AC isolation strength rating

Certification Standard: CE and IEC 61000-6-2 industrial compliance

Core Functional Features

Precision Multi-Channel Signal Processing

High-resolution ADC delivers accurate industrial signal conversion results.

Programmable filters eliminate high-frequency onsite signal noise.

Dual output modes adapt to diverse industrial control interfaces.

Stable Isolation & Protection Design

High dielectric strength isolates internal circuit transmission paths.

Overvoltage and ESD shielding protects core onboard components.

Standard relay parameters ensure consistent switching performance.

Industrial Monitoring Applications

Turbomachinery Monitoring System Matching

The I/O card connects vibration sensors to VM600 rack hardware.

The module transmits turbine operational data to control platforms.

The unit supports real-time signal switching for protection logic.

Process Industry Signal Transmission

The card converts field sensor signals for DCS and PLC systems.

The module achieves long-term stable industrial signal interaction.

The unit assists fault diagnosis for rotating mechanical equipment.
