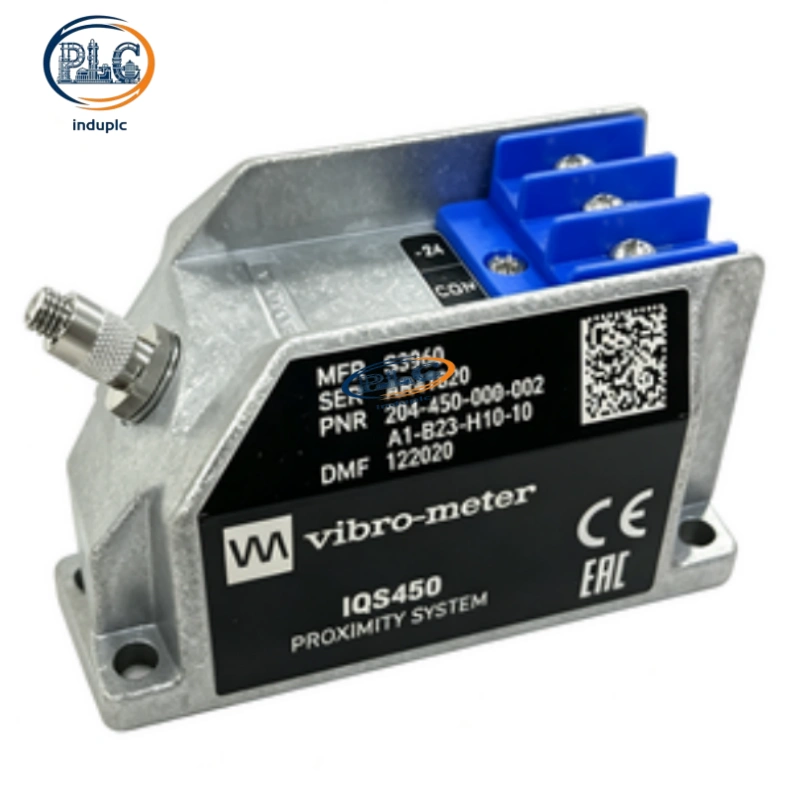

VIBRO-METER IQS450 204-450-000-001 A1-B23-H10-I0 Signal Conditioner

VIBRO-METER IQS450 204-450-000-001 Signal Conditioner

VIBRO-METER IQS450 204-450-000-001 processes eddy current sensor measurement signals.

This industrial signal conditioner delivers compensated displacement signal output.

VIBRO-METER IQS450 204-450-000-001 pairs with proximity probe monitoring systems.

Full Datasheet Technical Parameters

Electrical & Performance Specifications

Dynamic Signal Range: 16 V full-scale stable signal processing coverage

Frequency Response: DC to 20 kHz flat bandwidth at -3 dB tolerance

Measurement Range Compatibility: 2 mm and 4 mm probe displacement scales

Signal Output Type: Voltage and current dual selectable signal modes

Short Circuit Protection: Built-in protection for output signal terminals

Temperature Compensation: Integrated circuit thermal calibration structure

Mechanical & Environmental Specifications

Operating Temperature Range: -40°C to +180°C continuous working scope

Certification Standard: IECEx and CE hazardous area compliance approval

Applicable System: Matches industrial eddy current proximity measuring systems

Core Functional Features

Precision Temperature Compensated Processing

Automatic calibration eliminates thermal drift across temperature shifts.

Wide frequency bandwidth captures full dynamic mechanical motion data.

Dual output modes adapt to diverse industrial control system interfaces.

Rugged Protected Circuit Design

Short-circuit resistance prevents terminal and circuit hardware damage.

Explosion-proof qualification supports hazardous zone field deployment.

Stable signal conversion maintains accuracy during long-term operation.

Industrial Monitoring Applications

Turbomachinery Vibration Monitoring

The signal conditioner processes data from turbine shaft probe sensors.

The module converts radial vibration signals for rotating rotor assemblies.

The unit supports displacement tracking for power generation machinery.

Hazardous Process Industry Detection

The conditioner operates within certified explosive industrial environments.

The module enhances signal stability for long-distance field transmission.

The unit assists predictive maintenance for continuous process equipment.
