1. Core Technical Parameters

Backplane Power Supply：5 VDC

Analog Input Channels：8 channels

Field Signal Range：4–20 mA

Per Channel Load Resistance：250 Ω

Isolation Rating：1500 VDC group isolation

Operating Temperature：0℃ ~ +70℃

Compatible Chassis：ABB Symphony INFI 90 Harmony rack

2. Compatibility & Expandability

Same-brand Compatibility

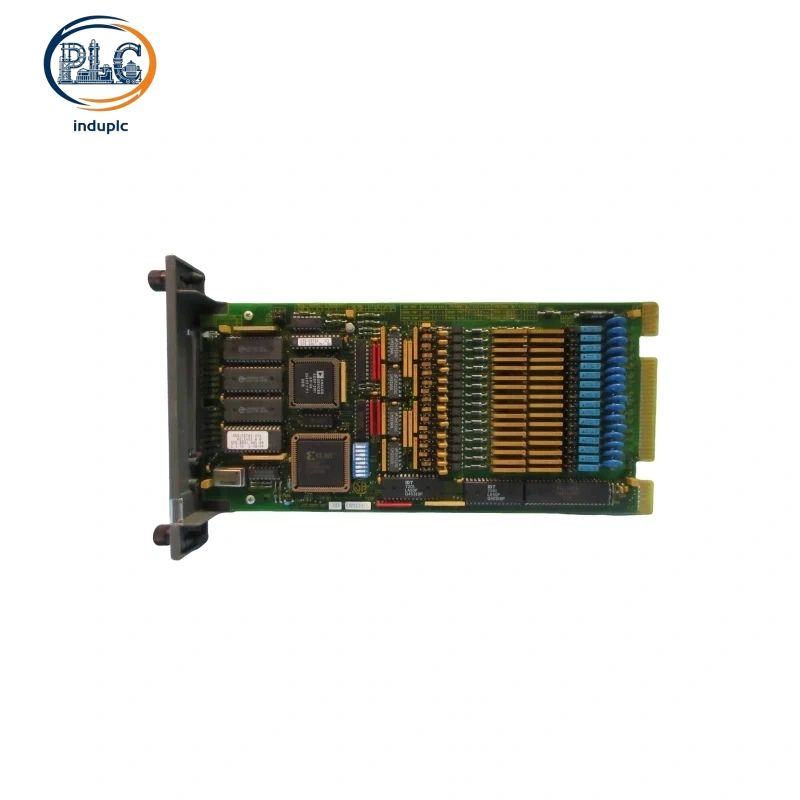

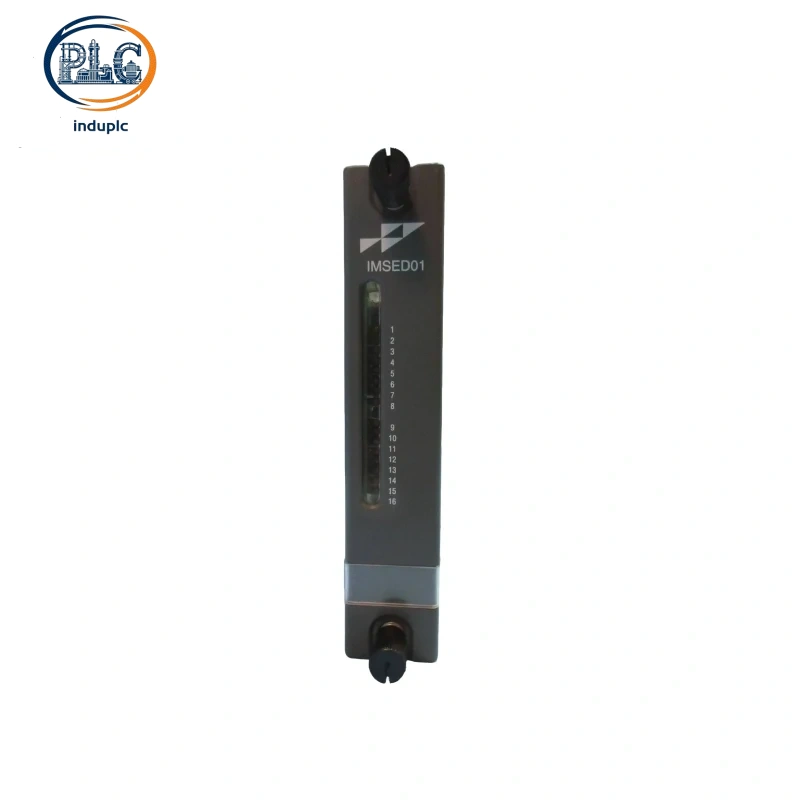

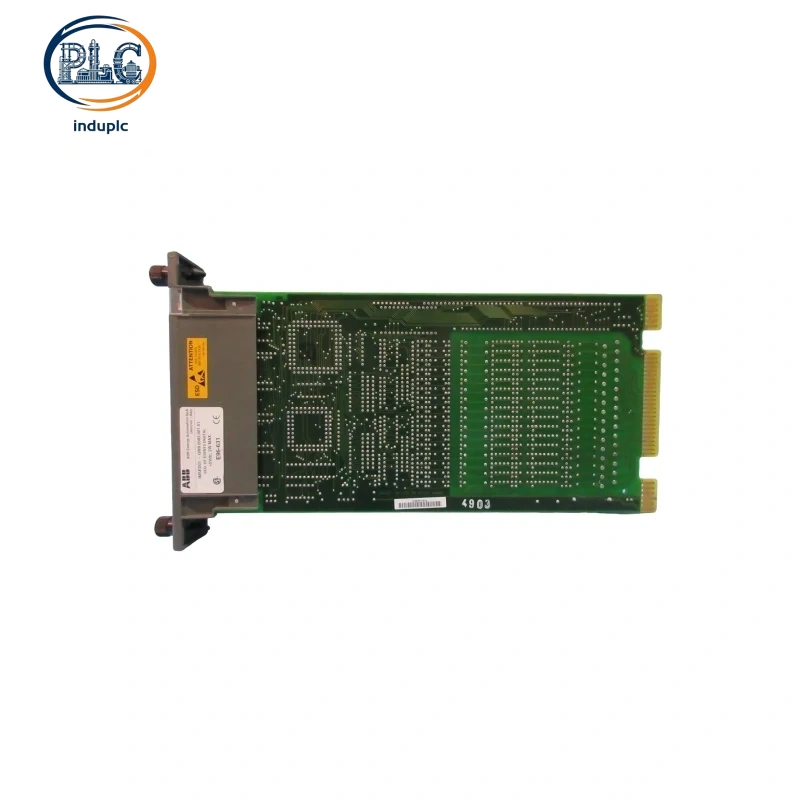

ABB IMSED01 is a dedicated analog input module built for ABB Symphony distributed control system. Field instrumentation technicians install multiple ABB IMSED01 on rack backplanes to expand analog signal acquisition points for continuous production facilities. ABB IMSED01 fits standard single-slot positions and delivers digitized measurement data to ABB INNPM12 network processor boards without additional signal conditioning adapters. Onboard diagnostic lights allow on-site crews to track running status of ABB IMSED01 and maintain reliable data collection from ABB temperature and pressure transmitters deployed on site.

Cross-brand Compatibility

Proprietary Controlway bus and customized backplane pin layout block direct hardware integration of ABB IMSED01 with third-party control racks. External signal transfer terminal blocks are required to build signal links between ABB IMSED01 and Siemens, Schneider PLC main units. Universal 4–20mA industrial analog standard enables ABB IMSED01 to receive feedback readings from most off-brand field sensors with no internal circuit modification.

3. Lifecycle Cost Analysis

Service cycle of ABB IMSED01 is fixed at 10 years, exchange rate:1USD=7.2CNY, purchase and installation charges are excluded from all cost calculations

Annual routine maintenance cost: Channel linearity calibration and internal dust clearance for ABB IMSED01 costs 29 USD per year, total 10-year maintenance expense: 290 USD

Spare part replacement cost: Signal conversion chip damage of ABB IMSED01 generally emerges once every 8 years, single spare module price: 396 USD, total replacement expense within 10 years: 396 USD

Retrofit expense saving: Existing field signal cables fully adapt to ABB IMSED01 during control cabinet overhaul projects, saving 238 USD extra construction labor cost compared with incompatible alternative analog input modules

Total cumulative running cost for single ABB IMSED01 over its 10-year service period: 448 USD
